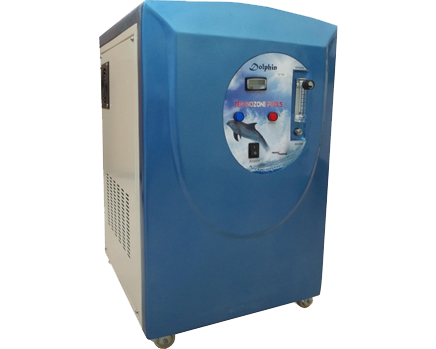

MODEL NO: TZ 20A Download Brochures


TZ 2
Feed Gas preparation
Feed Gas Inbuilt Oxygen concentrator
Outlet Pressure 9 psi
Compressor Air flow rate 65 to 75 LPM at 4 bar pressure
Oxygen Purity 93% ± 3%
Oxygen flow control 1 to 5 LPM
Sound Level < 45 dB (A)
Power supply AC 230V+ 10%, 50 Hz + 10%
Electrical classification II class B type
Temperature range 10° C – 40° C
Relative Humidity 20% to 70%
Ozone Generation
Ozone generation 20 grams per hour
Ozone concentration 65 to 70 gm / CUM
Make & Type of Electrode Technozone make / Alumina coated ceramic tube electrode with high concentration of ozone
Cooling tube arrangement / material of tube Water cooled / SS 316 tube inserted over aluminium tube for effective heat dissipation
Ozone Generation by Corona discharge technology Advanced Ceramic coated & glazed electrode covered
with concentric annular SS cooling tube is alternated
with high frequency corona discharge. This corona dischargedisassociates the oxygen atoms to regroup toform ozone.
Power electronics Full bridge IGBT based microprocessor controlled
power generation unit for the ceramic electrodes
Safety Features
AUTOMATION Fully automated control unit. High voltage (>245V AC) &
Low Voltage (< 200 V AC)indication & cut offElectrode failure indication & cut off
CONSTRUCTION Stylish GRP Cover &Rugged steel body for easy maintenance and solid strength
Electrical Specification
Input Voltage 230 V AC / 50HZ (single phase)
Power consumption 800 watts
Dimensions 450mm (W) X 450mm (D) X 680mm (H)
